Introduction

Single Sign-on (SSO) is a technology that allows users to sign in only once and then get access to multiple applications/services without re-authentication.

If a web portal includes several large independent sections (forum, chat, blogs etc.), a user can undergo the authentication procedure within one of the services and automatically get access to all other services without entering credentials several times.

SSO is always ensured by the joint operation of two applications: an Identity Provider and a Service Provider (also called as "IdP" and "SP"). ONLYOFFICE SSO implements the SP only. A lot of different providers can act as an IdP, but this article considers the Authentik implementation.

Creating an IdP in Authentik

  1. Sign up to the Authentik admin panel (https://authentik.yourdomain.com/if/admin/).
  2. Go to Customization -> Property Mappings.
  3. Click Create -> SAML Provider Property Mapping.
  4. In this way, create 3 Property Mappings with the following parameters:
    NameSAML Attribute NameExpression
    SAML givenName MappinggivenNamereturn user.attributes["first_name"]
    SAML sn Mappingsnreturn user.attributes["last_name"]
    SAML mail Mappingmailreturn user.email

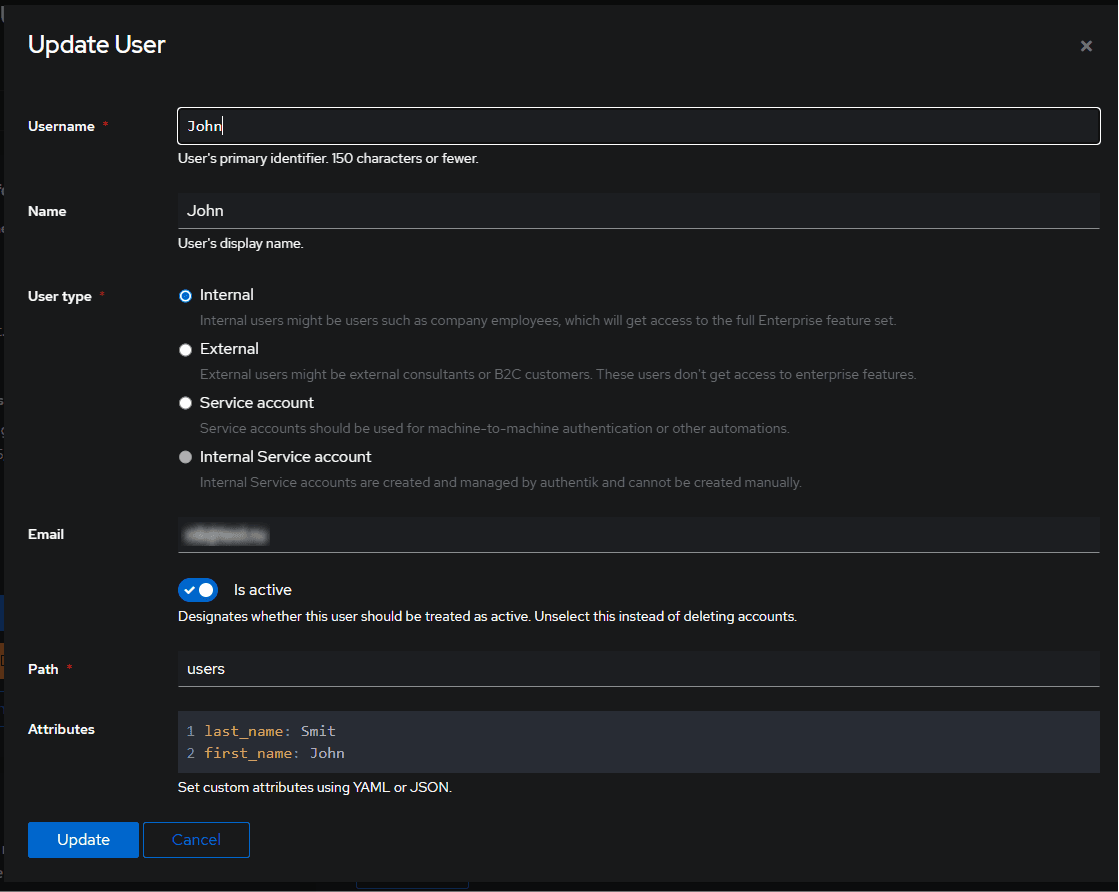

    This property mapping must be configured if users have attributes specified in Authentik. If the attributes are different, replace them with the necessary ones; if there are no attributes, no configuration is needed.

    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  5. Go to Providers -> Create.
  6. Select the SAML type.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

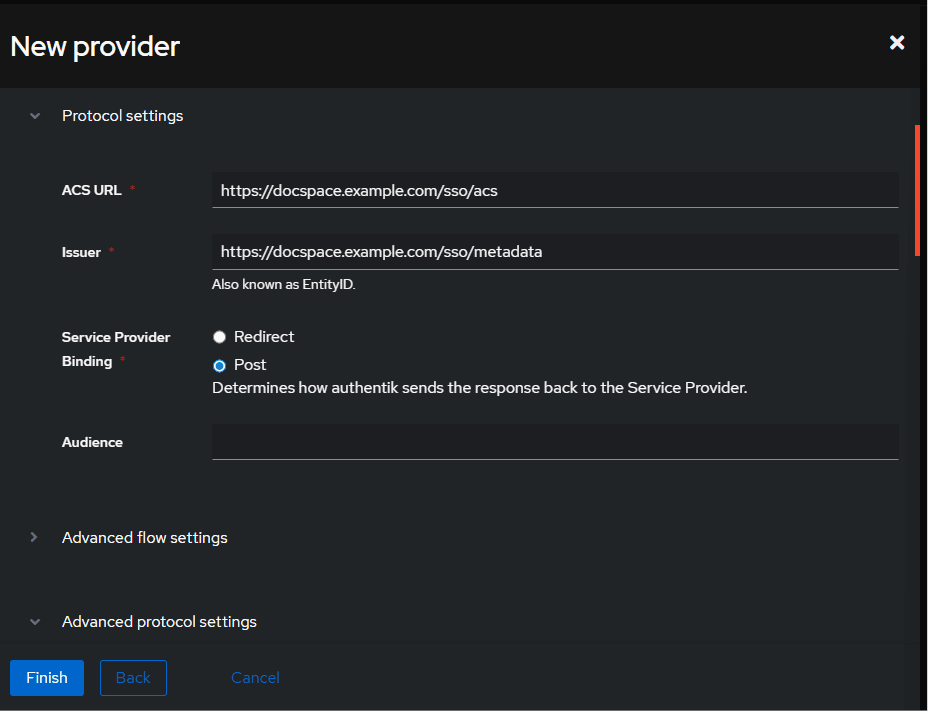

  7. Fill in the following fields:
    NameDocspace SAML
    Authorization flowdefault-provider-authorization-implicit-consent (Authorize Application)
    ACS URLhttps://docspace.example.com/sso/acs
    Issuerhttps://docspace.example.com/sso/metadata
    Service Provider BindingPOST

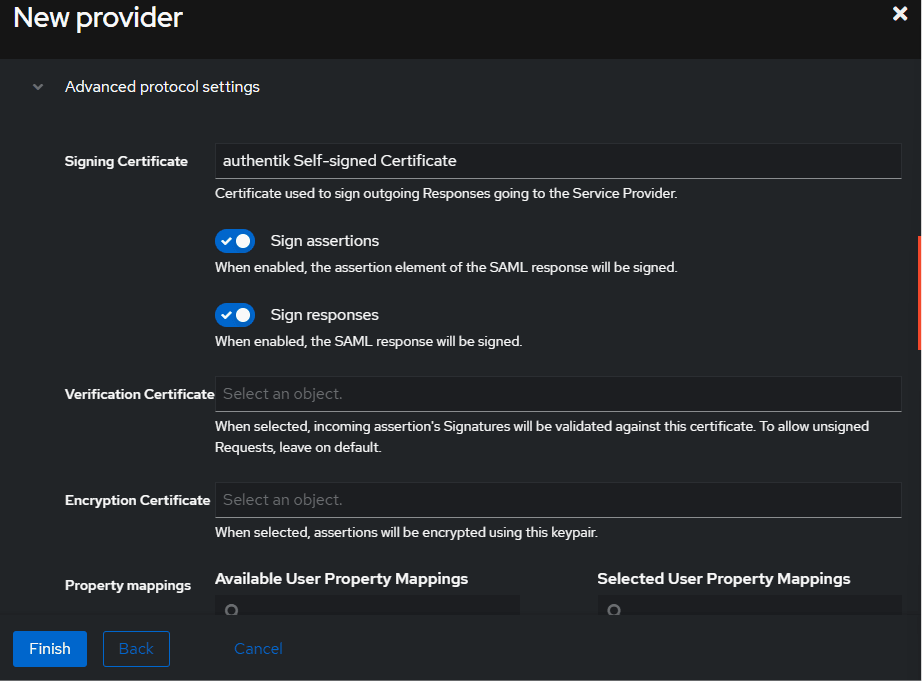

    Sign assertionstrue
    Sign responsestrue
    Signing CertificateFor the first time, you can specify authentik Self-signed Certificate or replace it with your own certificate
    Property mappingsIf you configured attributes in step 4, you need to add them from the left column to the right one by selecting and clicking the right arrow
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  8. Click Finish.

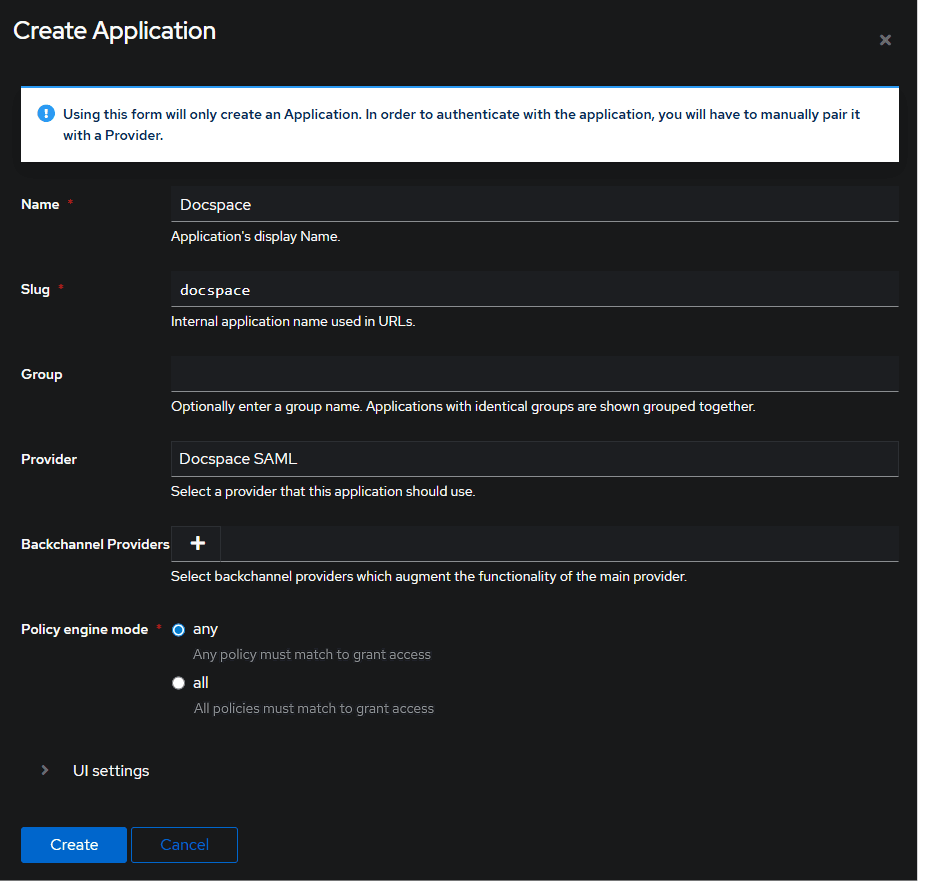

  9. Go to Applications -> Create.
  10. Fill in the following fields:
    NameDocspace SAML
    Slugdocspace
    ProviderSelect Docspace SAML
    Policy engine modeany
  11. Click Create.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  12. Go to the created SAML Provider.

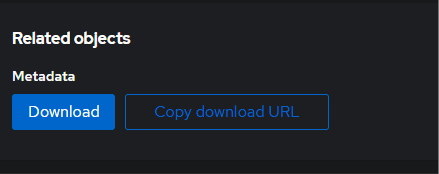

  13. Find the Metadata URL link (usually it is https://authentik.example.com/application/saml/docspace/metadata.xml)
  14. Copy this link or download the XML.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

Configuring ONLYOFFICE SP

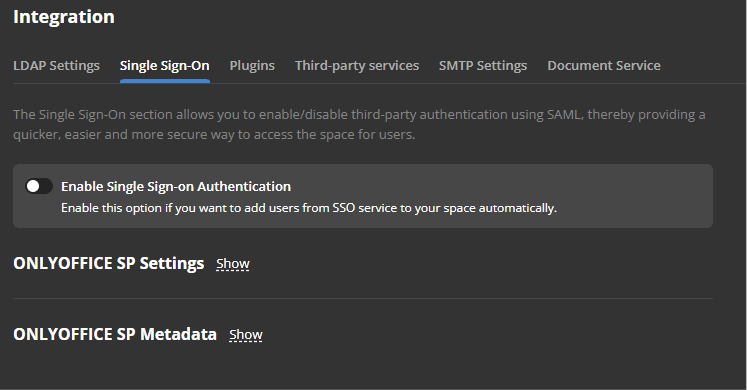

Make sure that you are signed in as an Administrator to your ONLYOFFICE DocSpace and go to the Settings menu, select the Integration section, and open the Single Sign-On tab.

How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  1. Enable SSO using the Enable Single Sign-on Authentication switch and paste the copied link into the URL to Idp Metadata XML field.
  2. Press the button with the upward arrow to load the IdP metadata. The ONLYOFFICE SP Settings form will be automatically filled in with your data from the Authentik IdP.

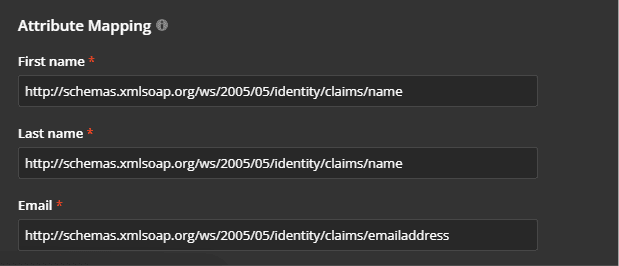

  3. If users do not have attributes configured and step 4 of the Creating an IDP in Authentik section was not performed, then the following parameters must be specified in Attribute Mapping:
    First Namehttp://schemas.xmlsoap.org/ws/2005/05/identity/claims/name
    Last Namehttp://schemas.xmlsoap.org/ws/2005/05/identity/claims/name
    Emailhttp://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

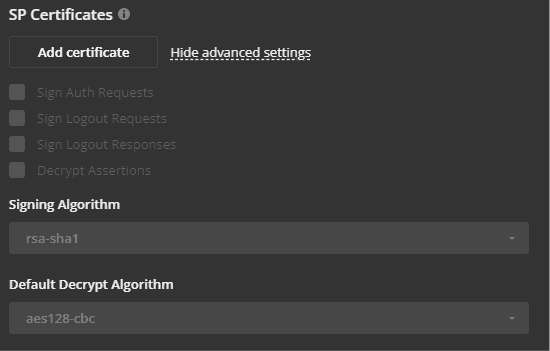

  4. Create a certificate in the SP Certificates section. To do that, click the Add certificate button in the corresponding section.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

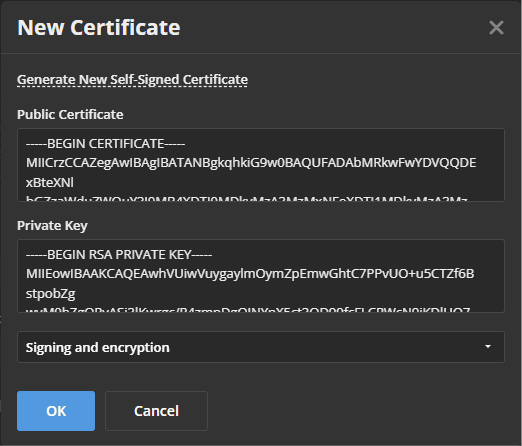

  5. In the opened modal window, click the Generate New Self-Signed Certificate link, and choose the signing and encrypt option in the Use for list. Before you save the certificate, copy the Public Certificate text to the clipboard and save it in file (it will be necessary for Authentik), then click the OK button.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

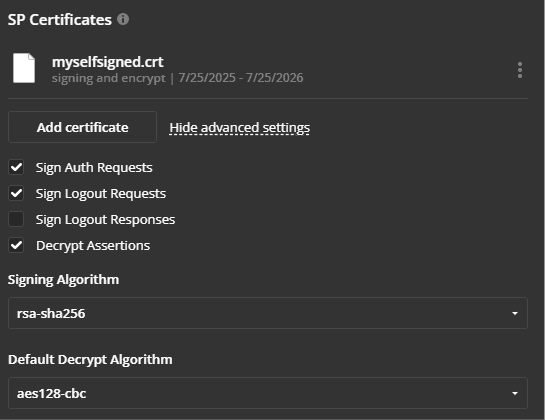

  6. Click the Save button.

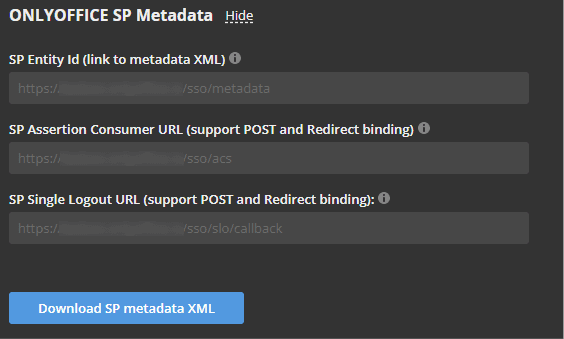

  7. The ONLYOFFICE SP Metadata section with the Download SP Metadata XML button should be opened.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  8. Return to Authentik to add the copied certificate. Go to System -> Certificates -> Create.
  9. Type in an arbitrary name and paste the copied certificate.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

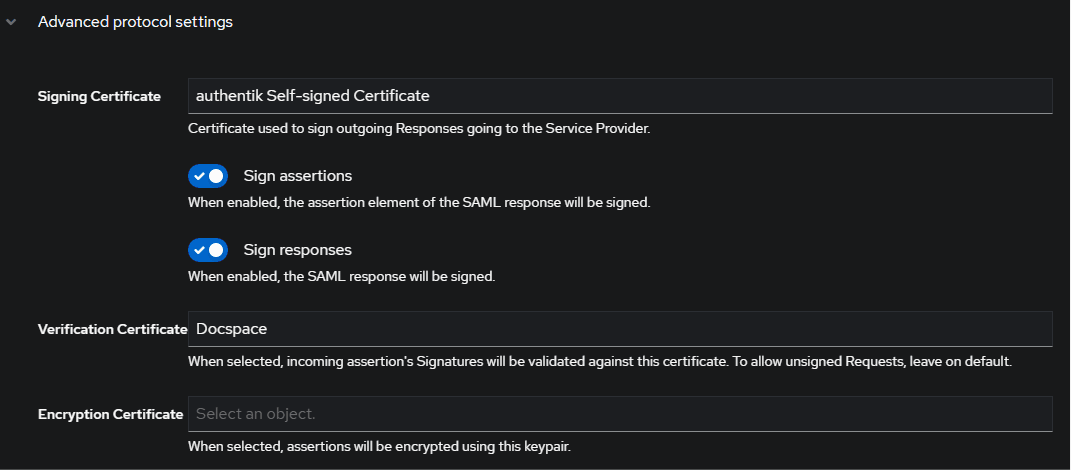

  10. Specify this certificate in the provider settings.
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP

    If encryption is required, then in step 8 you need to create a certificate with a private key, and specify this certificate in the Encryption Certificate field.

Checking the work of the ONLYOFFICE SP with the Authentik IdP

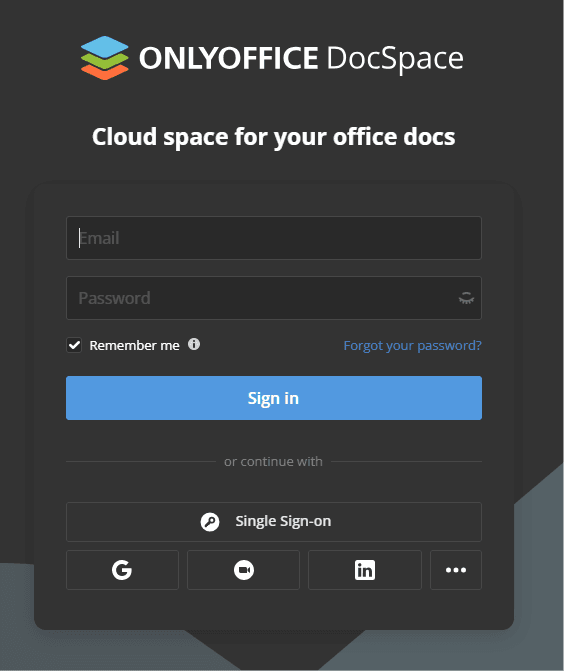

  1. Go to the ONLYOFFICE DocSpace Authentication page (e.g., https://myportal-address.com/login).
    How to configure ONLYOFFICE SP and Authentik IdPHow to configure ONLYOFFICE SP and Authentik IdP
  2. Click the Single Sign-on button. If the button is missing, this means that SSO is not enabled.
  3. If all the SP and IdP parameters are set correctly, we will be redirected to the Authentik IdP login form.
  4. Enter the login and password of the Authentik user and click the Sign In button.
  5. If the credentials are correct, we will be redirected to the main page of the portal (the user will be created automatically if missing, or the data will be updated if changed in the IDP).
